Air Detachable Gooseneck

This road trailer features a unique detaching assistance to the main deck.

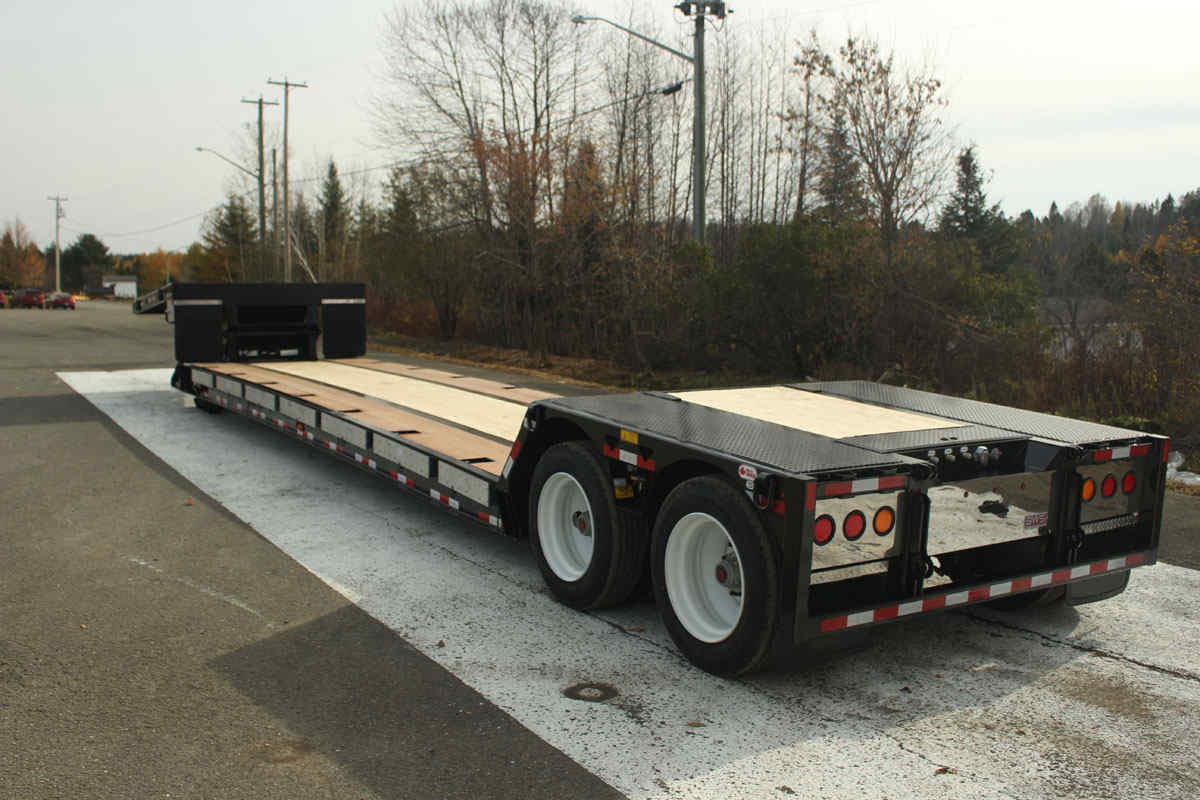

Trailer Overview

With a patented air mechanism, the road trailer features a unique detaching assistance to the main deck. There are no messy hydraulics and no violent motion with this trailer. The ADG offers the practical combination of low operation cost and minimal environmental impact to the air operation.

Models / Specs / Options

35ADG2X51 LP

Overall length of 51 feet
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped apitong/keruing outside on the main deck, 1 ⅛ inch shiplapped softwood between the beams
Two axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, one wishbone and 1 underslung air ride, 25,000 lbs, with adjustable ride height
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black

35ADG2X NR

Overall length of 48 feet
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped apitong/keruing outside on the main deck, 1 ⅛ inch shiplapped softwood between the beams
Two axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, one wishbone and one underslung air ride, 25,000 lbs, with adjustable ride height
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black

40ADG2X NR

Overall length of 48 feet
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped apitong/keruing outside on the main deck, 1 ⅛ inch shiplapped softwood between the beams, with open chain box between the beams
Two axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, one wishbone and 1 underslung air ride, 25,000 lbs, with adjustable ride height - includes air gauge and dump valve
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black

40ADG3X R

Overall length of 49 feet, 5 inches
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped apitong/keruing outside on the main deck, 1 ⅛ inch shiplapped softwood between the beams, with open chain box between the beams
Three axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, 1 wishbone and 2 underslung air ride, 25,000 lbs, with adjustable ride height - includes air gauge and dump valve
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black

40ADG3X53 NR

Overall length of 52 feet, 1 inch
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped apitong/keruing outside on the main deck, 1 ⅛ inch shiplapped softwood between the beams, with open chain box between the beams
Three axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, 1 wishbone and 2 underslung air ride, 25,000 lbs, with adjustable ride height - includes air gauge and dump valve
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black

50ADG3X53 NR

Overall length of 49 feet, 5 inches
Overall width of 102 inches
Floor of 1 ⅛ inch shiplapped softwood
Three axles of 25,000 lb capacity each, with large inner/outer bath bearings and ¾ inch wall
Ridewell RAR 240 suspension, 1 wishbone and 2 underslung air ride, 25,000 lbs, with adjustable ride height - includes air gauge and dump valve
Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
Standard colour is black
