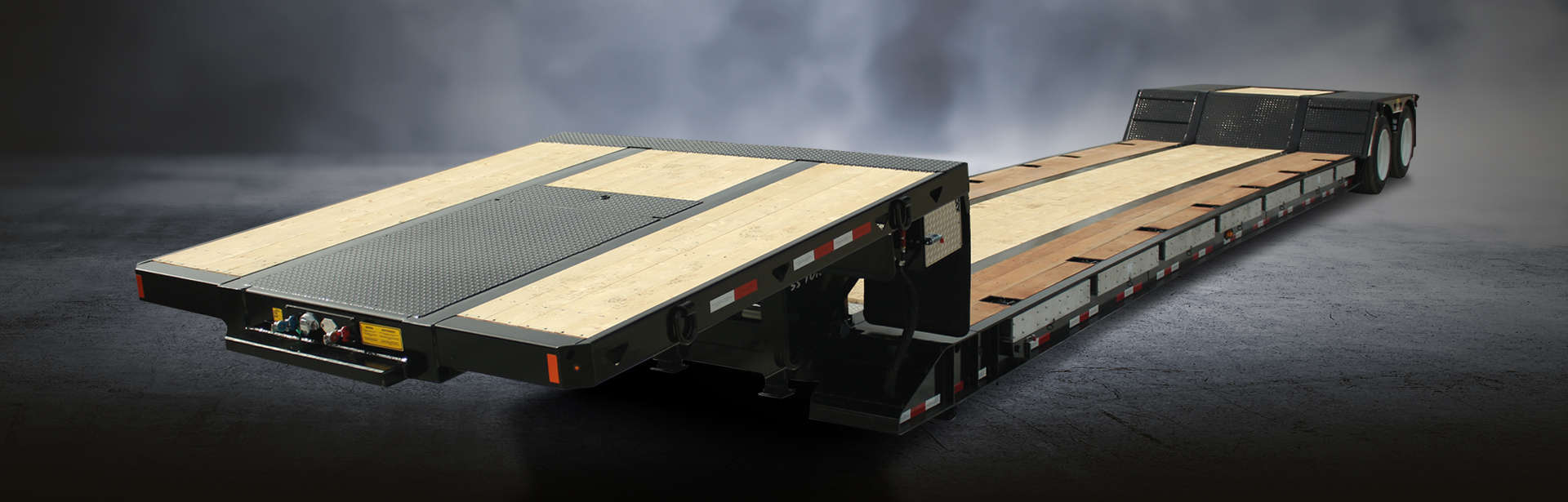

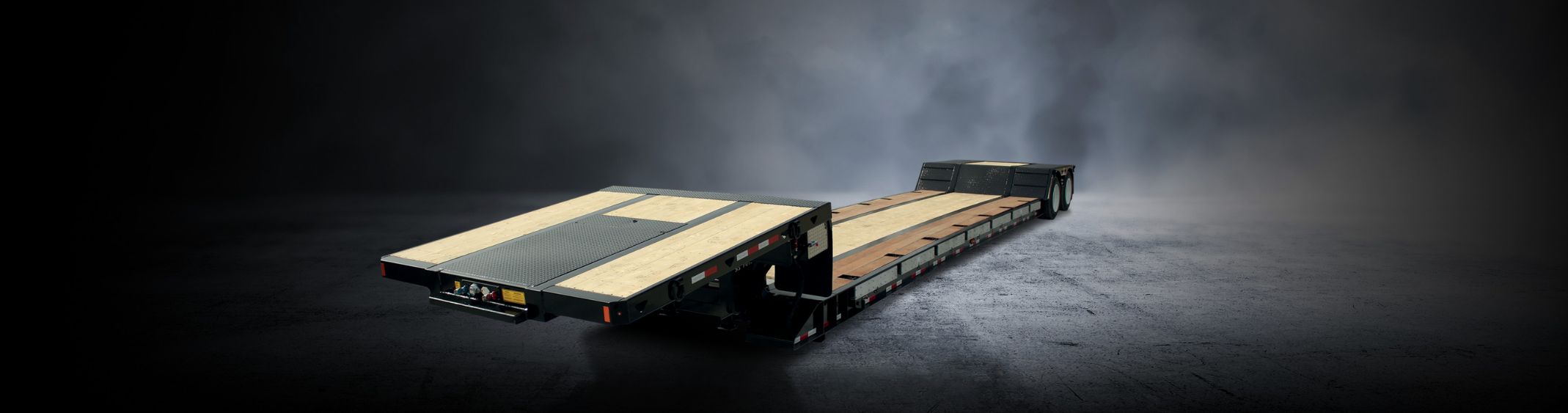

Double Drop Trailers

Request a Quote

Match the deck and neck to your load

Start with your equipment dimensions and how you plan to load it. Compare deck height, usable deck length, and the detachable neck options on each model.

Deck height and length

Published deck heights run from 13 to 22 in. Compare fixed decks and extendable models if your equipment needs more usable length.

Detachable gooseneck

Compare air, mechanical, and hydraulic detachable necks. Check which models use ground-bearing or non-ground-bearing designs for your loading conditions.

Load and clearance

Start with the weight and width of your equipment. Compare axle and extension options, outriggers, and tie-down points on the model you’re considering.

KEY FEATURES

Air Ride Suspensions with Dump Valve and Air Gauge
¾ in. wall rated at 25,000 lbs Capacity
Spring Brakes on all Axles

Softwood on Gooseneck
Hardwood outside Main Beams
Softwood inside Main Beams
Softwood on Rear Bridge

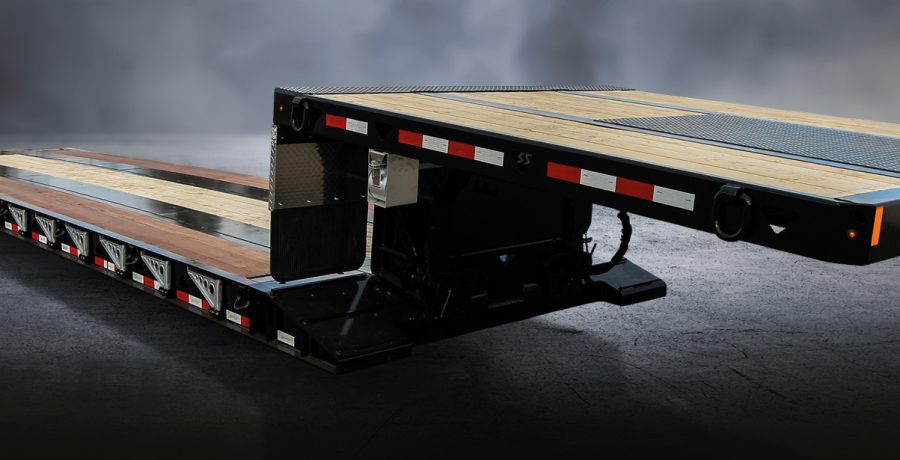

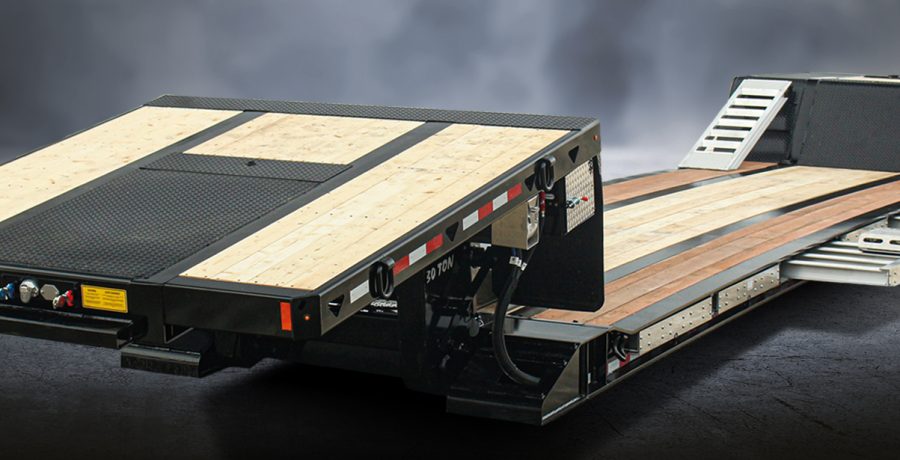

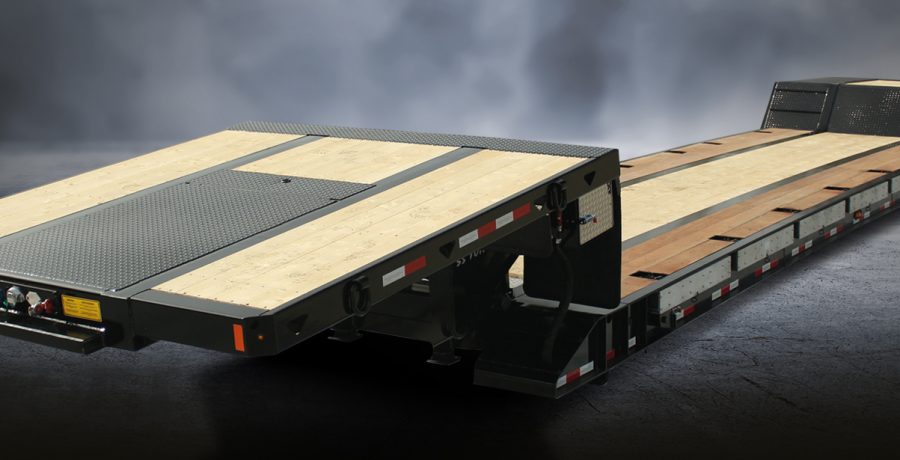

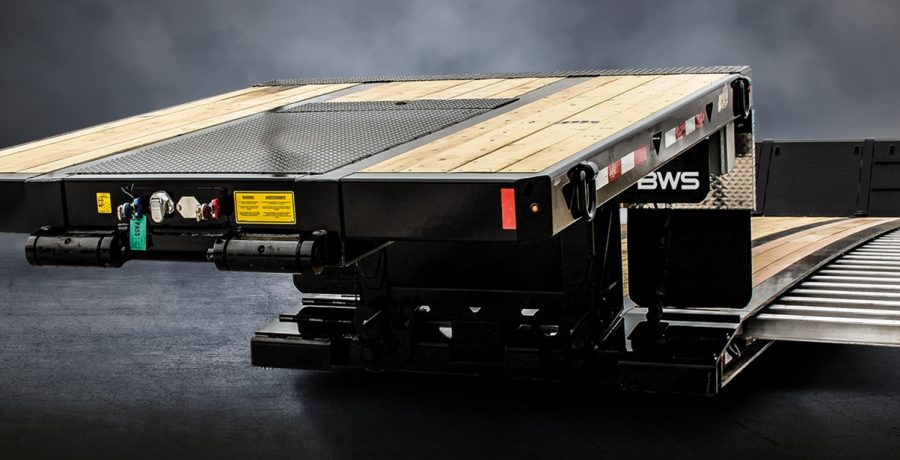

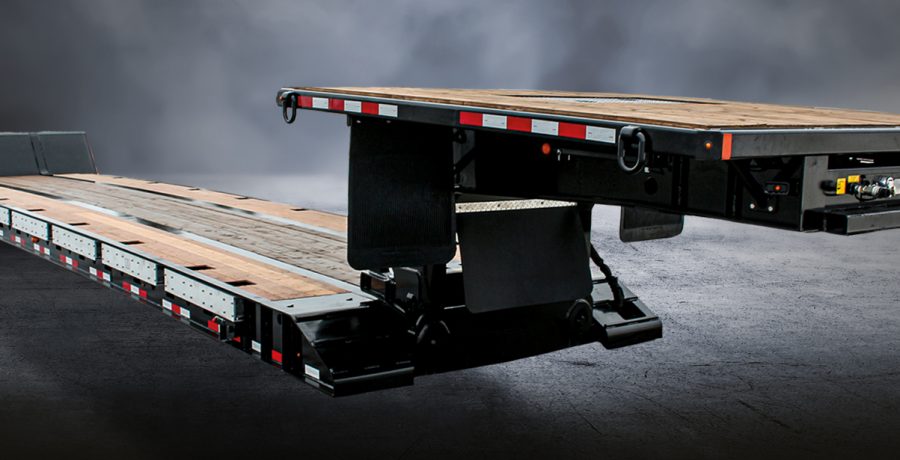

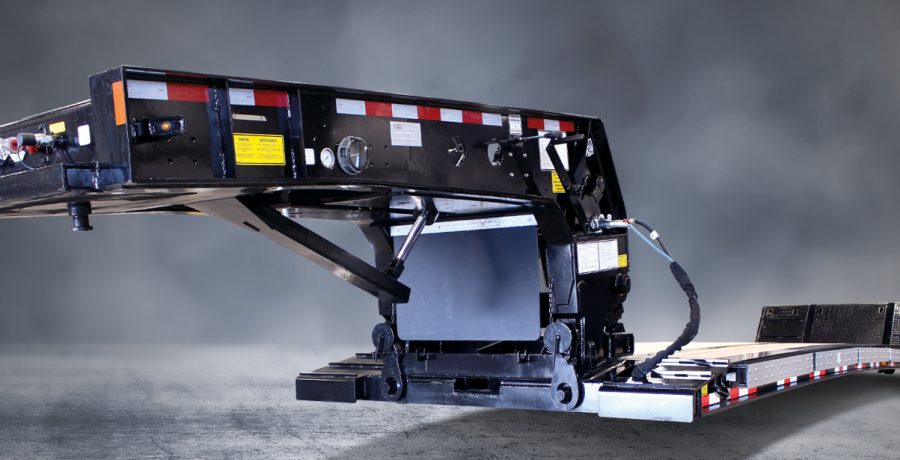

Gooseneck, Mechanical or Hydraulic Detachable (Non Ground Bearing) and Air Detachable (Ground Bearing)

All Wiring and Hosing are secured through
Rubber Grommets to protect from Chaffing

13 in. to 22 in. Deck Heights
24 ft. to 34 ft. Fixed Deck
Extendable Deck up to 50 ft.
Multiple Deck Widths

Interchangeable Neck
Extensions and Axle Extensions

Transition Ramps available

OPTIONS

Air, Mechanical or
Hydraulic Detachable

Decks Lengths range from
24 ft. 6 in. to 34 ft.

Deck Heights range from
13 in. to 22 in.

Multiple Widths available
from 102 in. to 120 in.

Optional Flip Axle

Flip Extension Capable for Single Axle Jeep

Toolbox located in Deck

Load Securement, D Rings, Chain Pullouts in floor, Outriggers (Swing-out or AG style Pull-out tray), Winches

Wide Load Options Strobes, Wide Load Lights, D Sign, Flag Holders

Apitong Decking
