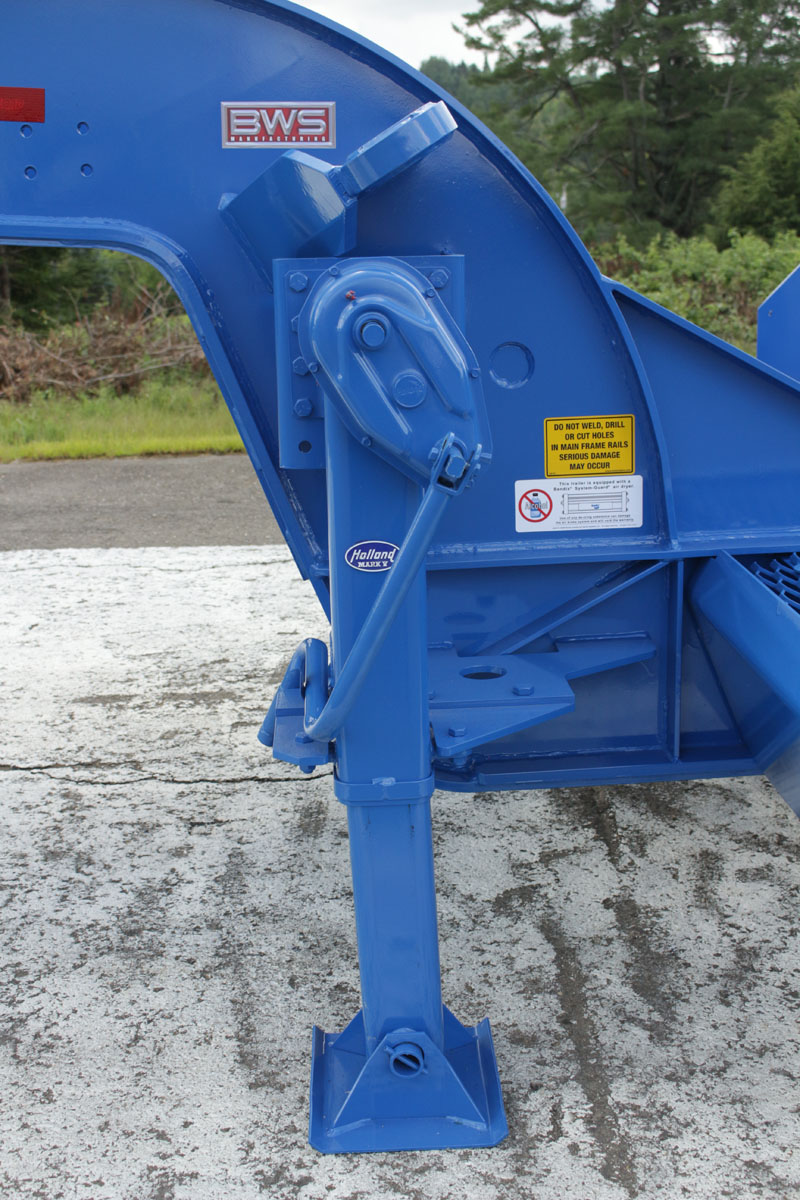

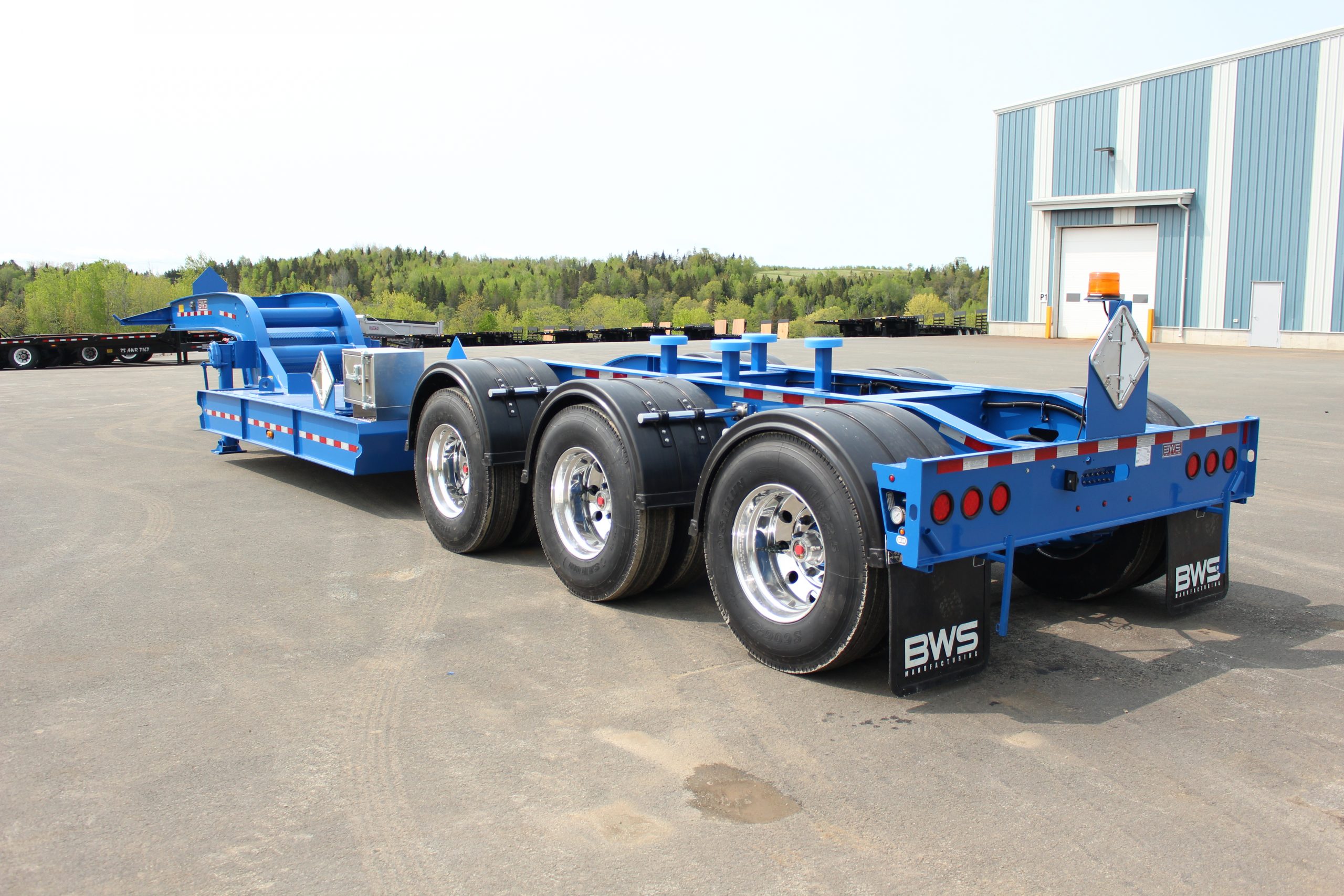

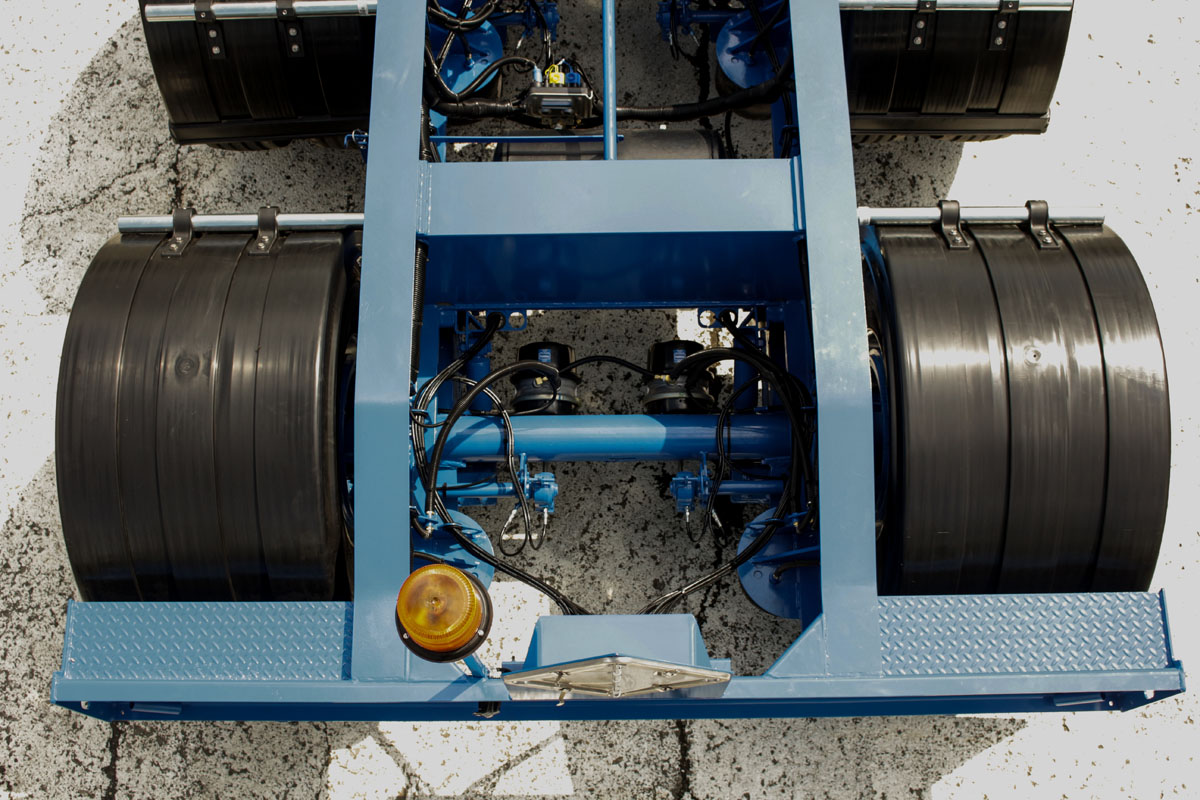

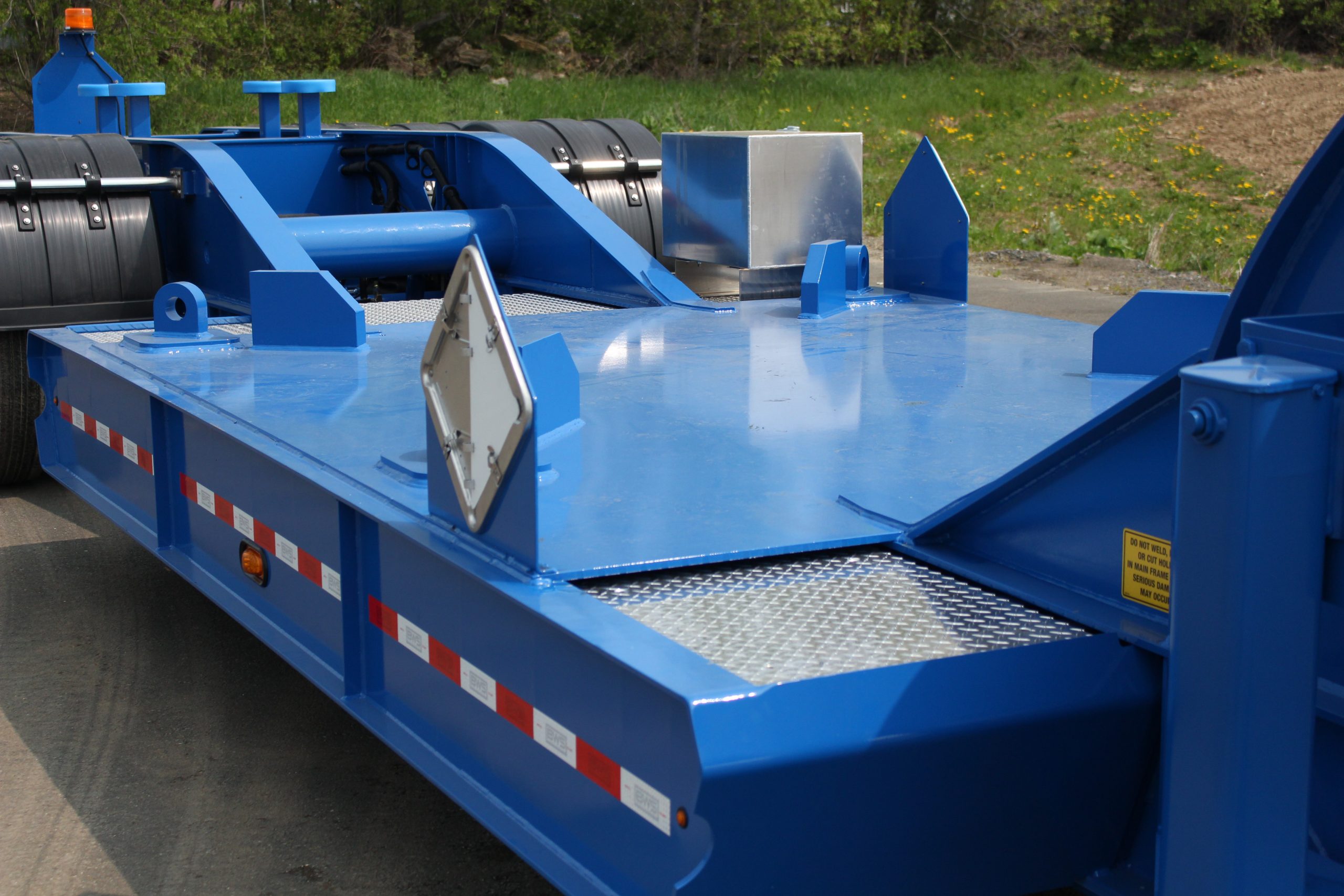

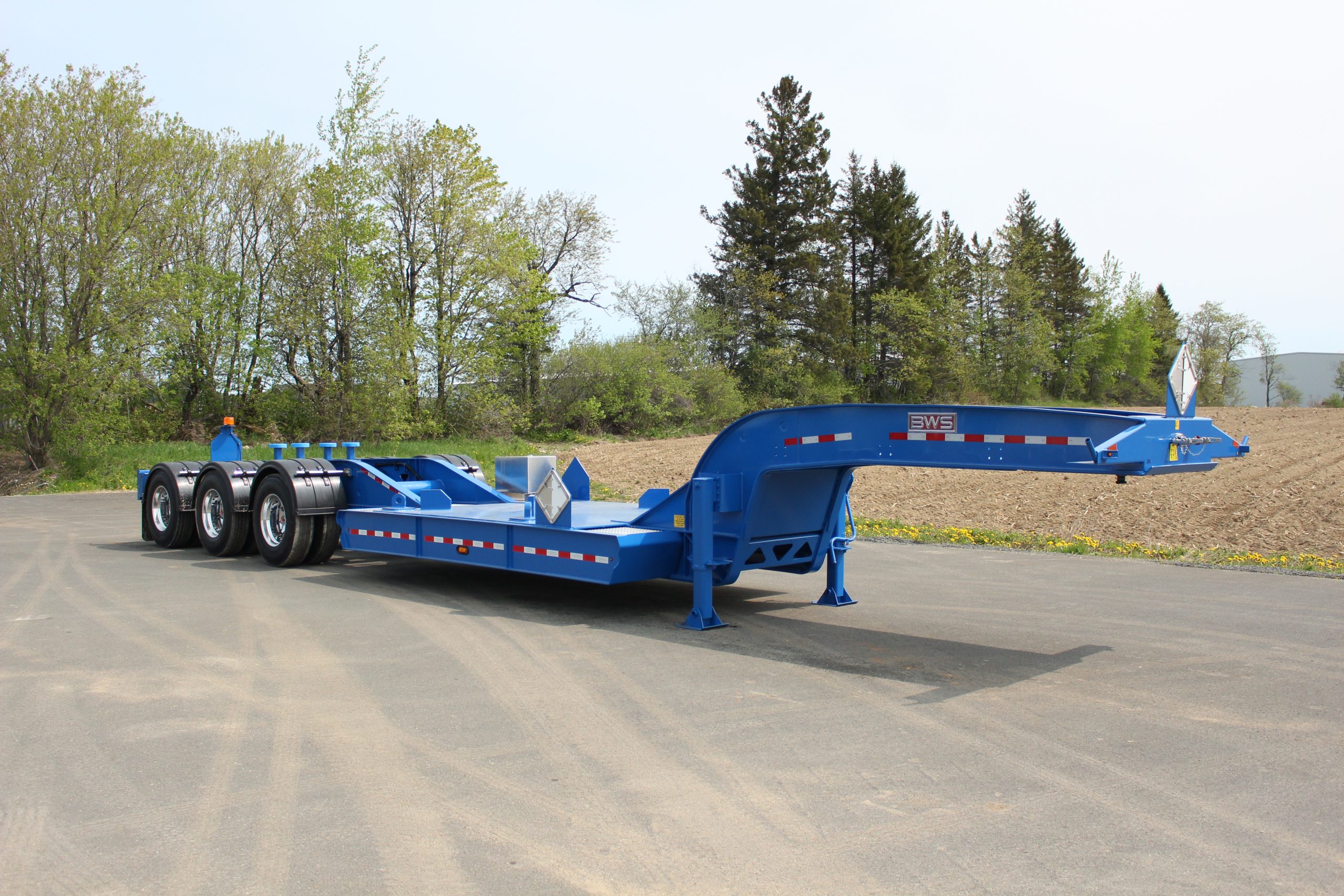

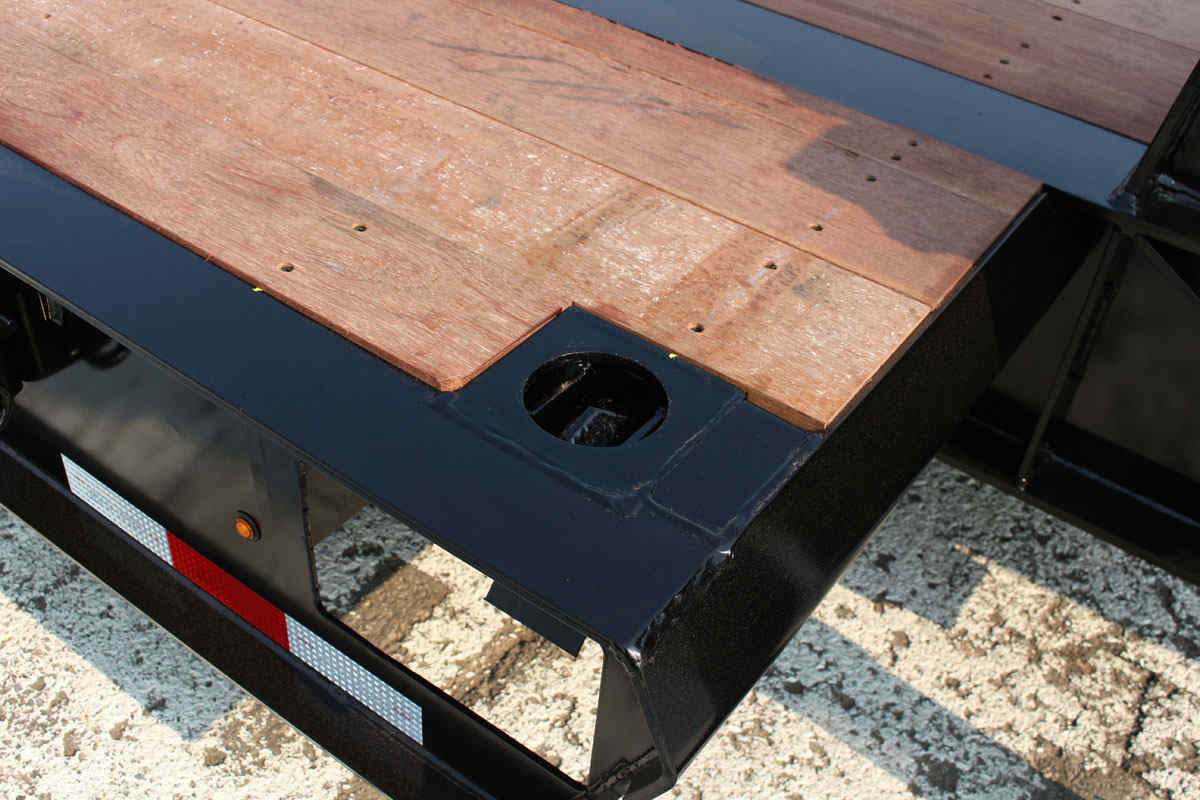

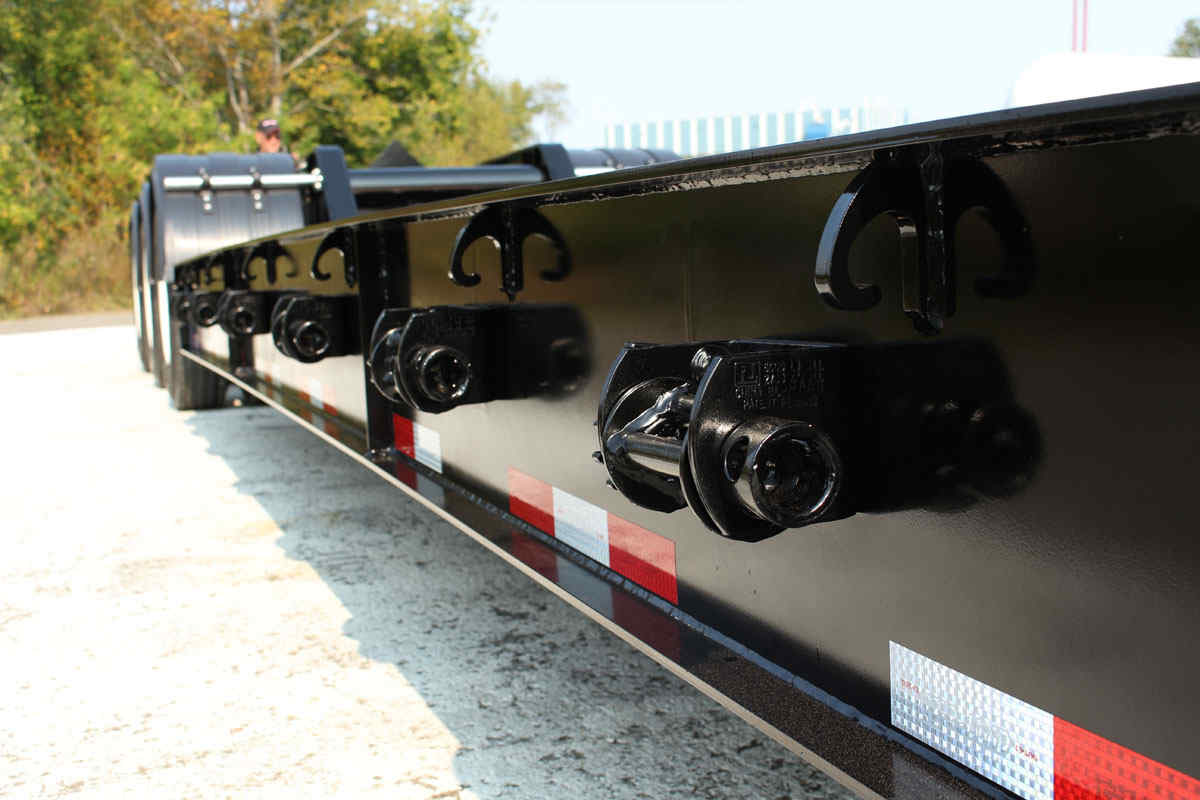

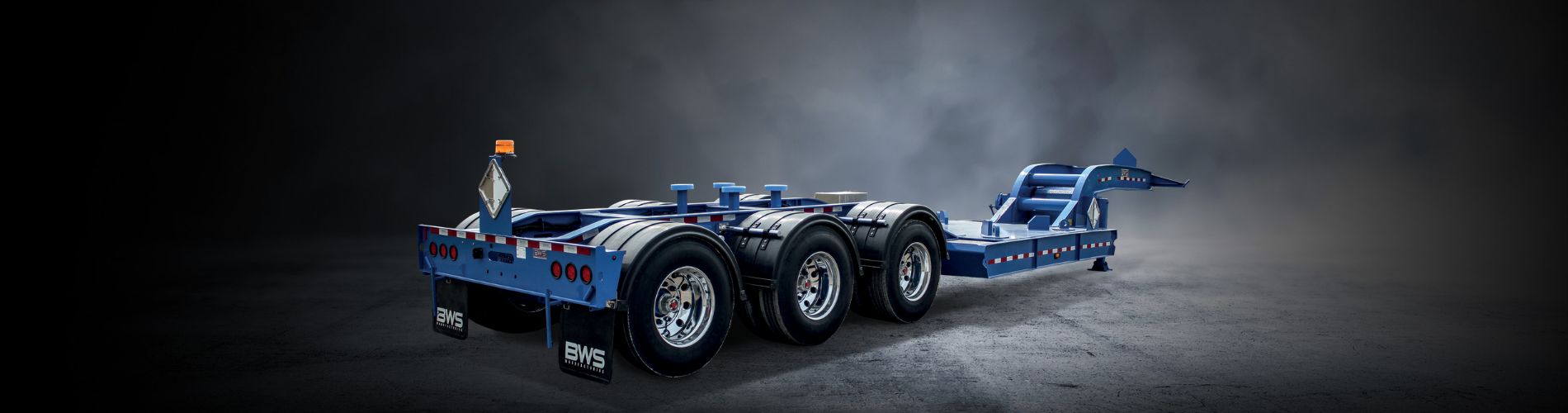

Blue BWS double-drop trailer in profileRear three-quarter view of the blue BWS nuclear trailerSteel deck, mesh and cask mounting pointsOverhead detail of the 45DD3X running gearWood deck and recessed tie-down detailBlue gooseneck and landing legTie-down hardware along the trailer frameRear frame and mounting hardware

Trailer Overview

Nuclear transportation is one of the most highly regulated industries in North America. With our specially engineered structure designed to accommodate the specific needs of this industry, we are proud to say over 60% of transported nuclear waste is done so on a BWS trailer. All of our nuclear trailers are prepared for finish by steel shot blast, with a commercial/industrial top coat applied, and are oven baked. Our standard colour is black.

Models / Specs / Options

42DD3X

  • Overall length of 42 feet
  • Overall width of 96 inches
  • Floor of ½ inch plate with 30 inch, 3 lb mesh on front and rear
  • Three axles of 25,000 lb capacity each, ¾ inch wall and 71.5 inch track
  • Ridewell RAR 240 suspension, 1 wishbone, 2 underslung Air Ride 25,000 lbs., 6 ½ inch ride height, includes air gauge and automatic dump valve

45DD3X

  • Overall length of 44 feet, 5 inches
  • Overall width of 102 inches
  • Floor of ⅜ inch plate with 30 inches, 3 lbs., mesh front and rear
  • Three axles of 25,000 lb capacity each - 77.5 inch track with ¾ inch wall
  • Ridewell RAR 240 suspension, 1 Wishbone, 2 Underslung Air Ride Suspension, 30,000 lb 6 ½ inch ride height, adjustable ride height - includes air gauge and automatic dump valve

46DD4X WCS

  • Overall length of 74 feet, 10 inches (46 feet with flipneck up and rear suspension removed)
  • Overall width of 102 inches
  • Floor of ½ inch plate, 3 lbs., mesh at front and rear
  • Four axles of 25,000 lb capacity each, ¾ inch wall, 77.5 inch track
  • Ridewell Air Ride suspension, 30,000 lb 6 ½ inch ride height, includes air gauge and manual dump valve

49DD3X HD

  • Overall length of 49 feet, 2 inches
  • Overall width of 102 inches
  • Floor of 1 ⅛ inch keruing
  • Three axles of 25,000 lb capacity, ¾ inch wall and 77.5 inch track
  • Ridewell RAR 240 suspension, 1 wishbone, 2 underslung Air Ride Suspension 25,000 lb 9 inch ride height, adjustable ride height - includes air gauge and automatic dump valve

50DD4X

  • Overall length of 49 feet, 10 inches
  • Overall width of 102 inches
  • Four axles of 25,000 lb capacity, ¾ inch wall with a 77.5 inch track
  • Ridewell RAR 240 suspension, 1 wishbone, 2 underslung Air Ride Suspension 25,000 lb, 6 ½ inch ride height, adjustable ride height - includes air gauge and automatic dump valve

28DD1X

  • Overall length of 27 feet, 5 inches
  • Overall width of 102 inches
  • Dedicated mounting plates and twist locks for one ILAW transporter pallet
  • One 25,000 lb axle with a 77.5 inch track and ¾ inch wall
  • 25,000 lb air-ride suspension with 6½ inch adjustable ride height, air gauge and automatic dump valve

47DD3X

  • Overall length of 46 feet, 6 inches
  • Overall width of 102 inches
  • 10-160B cask securement package with bolted shear stops
  • Three 25,000 lb axles with a 77.5 inch track
  • Ridewell RAR 240 air-ride suspension with 6½ inch adjustable ride height, air gauge and automatic dump valve

Compare the seven models

Compare deck construction, axle layouts and air-ride suspension across the lineup. Confirm the dimensions and configuration for your specific load and route with BWS.

Scroll horizontally to compare all seven models.

Specification28DD1X42DD3X45DD3X46DD4X WCS47DD3X49DD3X HD50DD4X
Overall length27 ft 5 in42 ft44 ft 5 in74 ft 10 in*46 ft 6 in49 ft 2 in49 ft 10 in
Overall width102 in96 in102 in102 in102 in102 in102 in
Deck / mountingDedicated plates and twist locks for one ILAW transporter pallet½ in steel plate; 30 in mesh front and rear⅜ in steel plate; 30 in mesh front and rear½ in steel plate; mesh front and rear10-160B cask mounting with bolted shear stops1⅛ in keruingConfirm with BWS
Axles1 × 25,000 lb3 × 25,000 lb3 × 25,000 lb4 × 25,000 lb3 × 25,000 lb3 × 25,000 lb4 × 25,000 lb
Axle track77.5 in71.5 in77.5 in77.5 in77.5 in77.5 in77.5 in
Axle wall¾ in¾ in¾ in¾ inConfirm with BWS¾ in¾ in
Air-ride suspensionAir ride, 25,000 lbRidewell RAR 240, 25,000 lbRidewell RAR 240, 30,000 lbRidewell air ride, 30,000 lbRidewell RAR 240, 30,000 lbRidewell RAR 240, 25,000 lbRidewell RAR 240, 25,000 lb
Suspension layoutConfirm with BWS1 wishbone, 2 underslung1 wishbone, 2 underslungConfirm with BWS1 wishbone, 2 underslung1 wishbone, 2 underslung1 wishbone, 2 underslung
Ride height6½ in, adjustable6½ in6½ in, adjustable6½ in6½ in, adjustable9 in, adjustable6½ in, adjustable
Dump valveAutomaticAutomaticAutomaticManualAutomaticAutomaticAutomatic†

* 46DD4X WCS. Overall length is 46 ft with the flipneck raised and the rear suspension removed.

Steel decks listed with mesh use 3 lb mesh. An air gauge is listed in the documented configurations. Axle ratings are component ratings. Confirm trailer payload for your build.

† 50DD4X. The published configuration lists an automatic dump valve. Confirm the valve type for your build.

Configurations & features

Built for the cask

BWS engineers double-drop trailers for vertical stand-alone casks. The 42, 44 and 46 ft double-drop lineup includes configurations for A, B and RT-100 casks. BWS can review other cask types and tailor the trailer to the application.

Loading and handling

Deck and securement layouts support safe, efficient loading and unloading, helping crews work productively.

Tractor and booster options

Configurations can accommodate a tri-drive tractor or a jeep. Booster-ready setups are available on select models.

On-board storage

Available provisions carry the cask lid and limiter on the trailer during filling.

Inspection readiness

Configurations are designed with Level I inspection readiness in mind. Confirm the requirements for your move with BWS.

Durability and operating cost

Engineering and fabrication focus on durability in demanding environments to help control operating costs over the trailer’s service life.

Bake-on finish

Steel shot blast prepares the surface for an industrial topcoat and oven-baked finish. Black is the standard colour.

Warranty

5 years structural. 3 years paint and finish.

Structural coverage applies to eligible main-frame beams. Standard paint coverage is prorated, and custom colours have separate terms.
